Trim & clips
Multi-cavity cold runner, ABS/PP, series after T0 dim approval.
Work areas
References
Example sectors and part types — customer names published with approval.
Automotivetrim / clips
Appliancescovers / housings
TechnicalPA+GF / inserts
Consumersmall enclosures
Examples
What kind of work
Real customer logos are added with permission — for now, sector and part type.

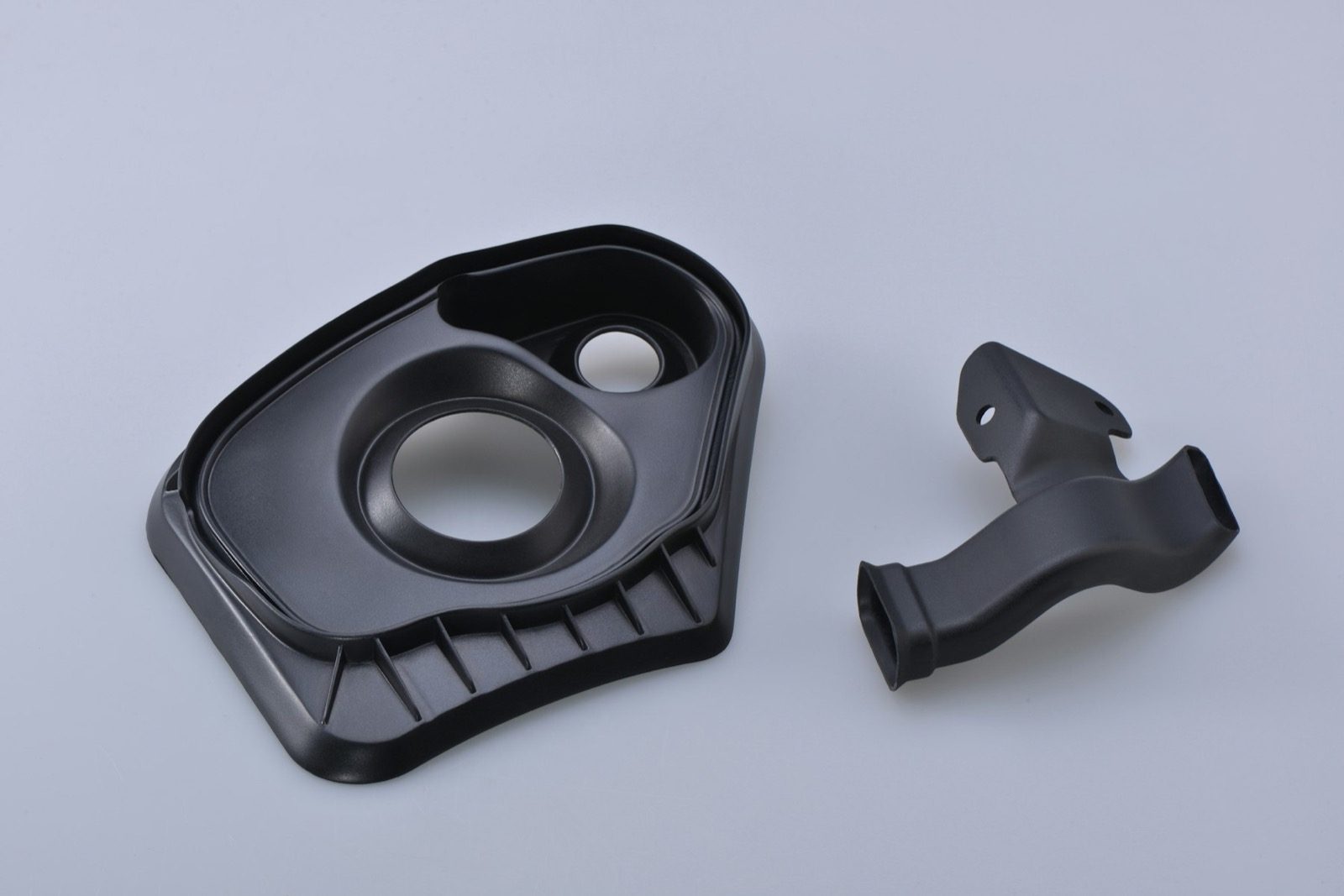

Housing / cover
Visible surface, hot runner, color samples and packing.
Connector body
PA+GF, insert fit, assembly check with 3D print.
Small enclosure
DFM wall fix, fast prototype, then production tool.
Housing prototype
3D validation + cold runner sample — non-sterile parts.
Fan / grille
Glass-filled PP, long flow path, cooling-led mold design.
Process story
Anonymous example: trim clip
No customer name — how a typical line runs.
Need: ABS trim clip, mid annual volume, visible surface.
DFM: Wall equalization, more draft, gate mark moved to a cosmetic-safe zone.

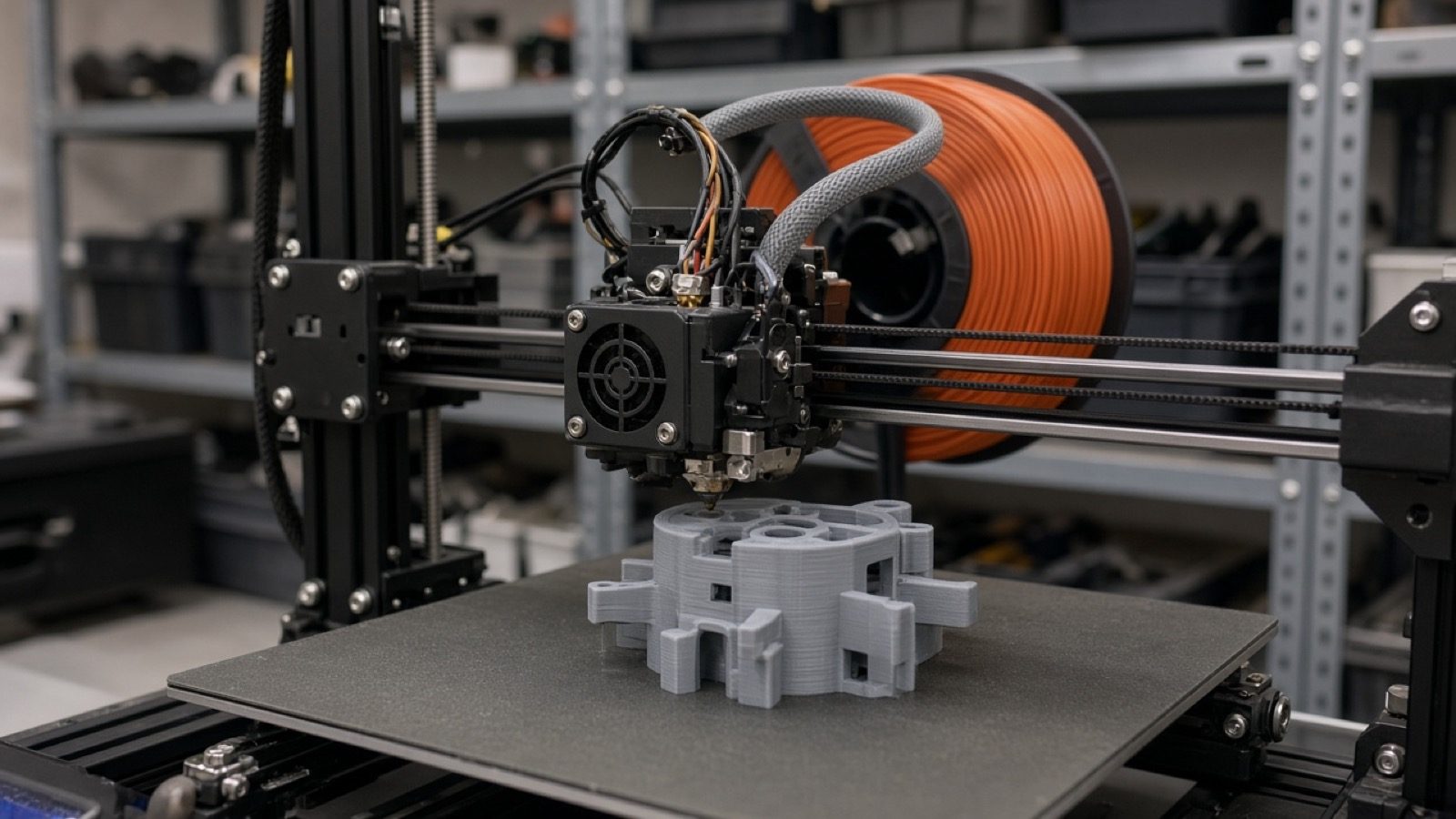

Prototype: FDM fit check; then multi-cavity cold-runner tool.
T0: Dim + color approval; one insert revision; series parameters locked.
- Output: production tool + approved samples

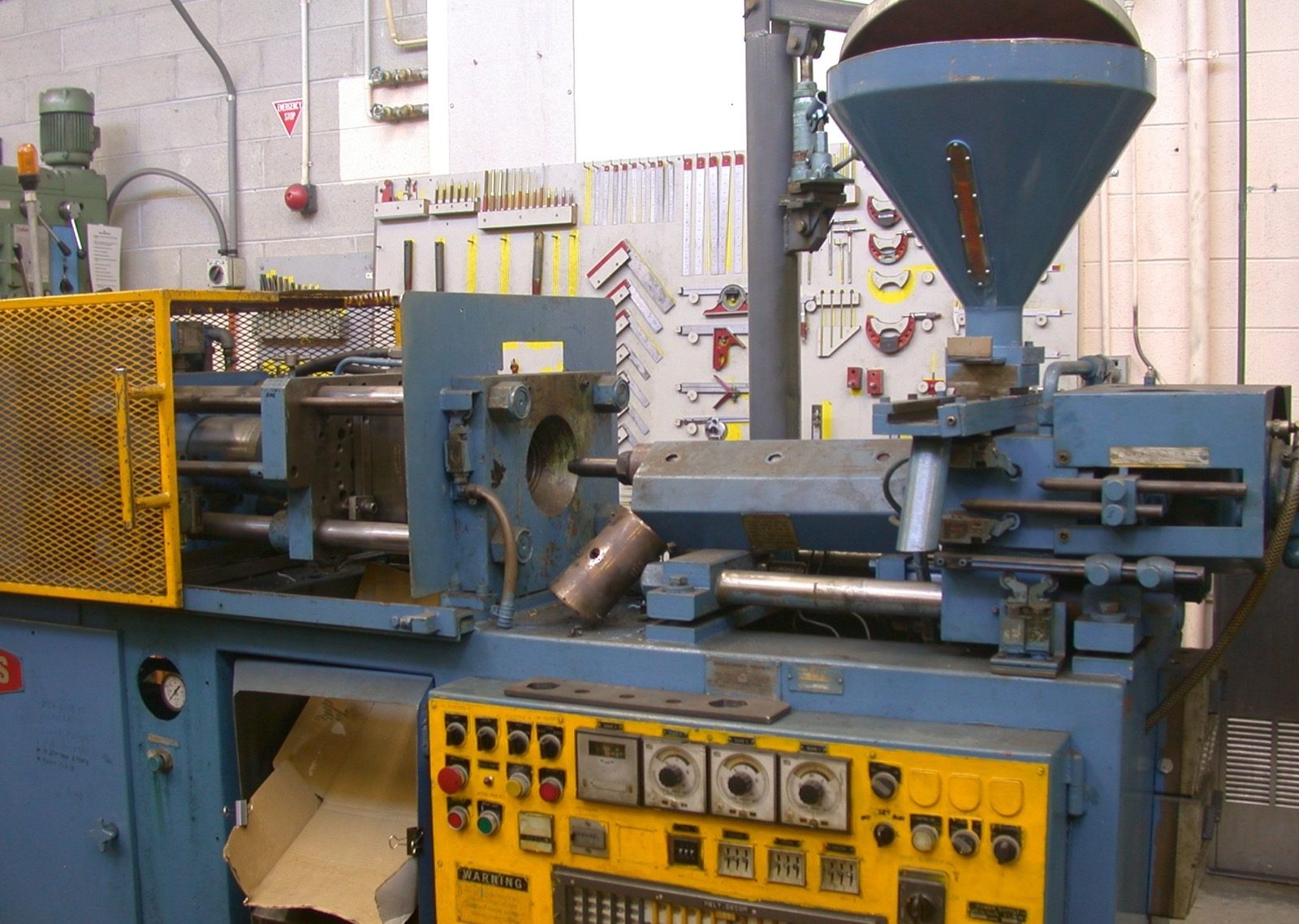

- Line: CAD → CNC/EDM → Yizumi T0
- Lead time: depends on part complexity
Trust
How we work
- 01NDAIf needed
- 02DFMRisk list
- 03T0Dim approval
- 04SeriesRepeatable
- 05PublishApproved refs
FAQ
About references
Why no customer logos?
Names and logos are published only with written approval. This page shows sectors and part types.
Do you do similar work?
Send a STEP and resin note — we map mold / T0 / contract runs.
Want to be listed?
After approval we can add name / logo / a short case.
Project
Let’s talk your sector
Describe the part type — we’ll map the right line.
